Product Description
Built with the most rugged and high-quality components and coupled with cutting-edge firmware, the EZRUN MAX5 is able to deliver unmatched power and performance for even the most hardcore of racing applications, but is also responsive enough to protect itself from damage due to overloading due to physical abuse, overuse or even human error.The waterproof and dust-proof design allows the MAX5 to be used in all weather conditions without any issue of damage caused to the ESC from water or dust.The MAX5 has adopted the world’s first HV built-in BEC with an output current of up to 25Amp and a switchable output voltage of 6V-7.4V. The high voltage BEC is designed to handle today’s high voltage servos on demand used by large scale vehicles.With incredible acceleration capabilities and a rock-solid, stable output, the MAX5 can handle instant full-torque start-ups for wheelies, high-speed racing on straightaways and powering through the bumpiest terrain. The user will have the choice of adjusting the ESC parameters as per his preference and ability.

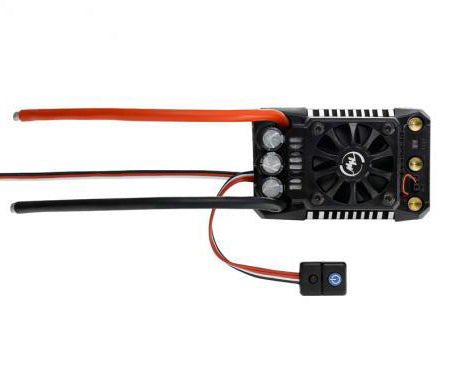

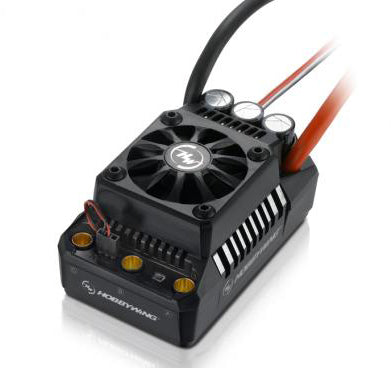

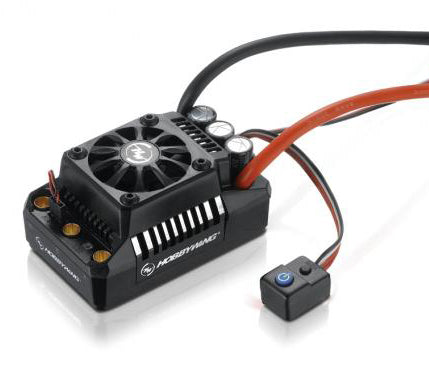

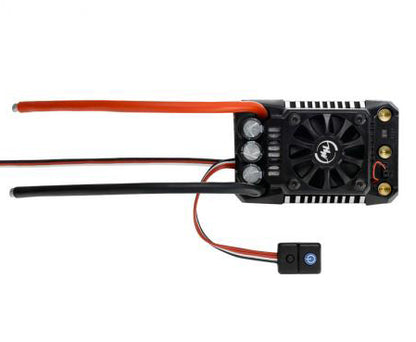

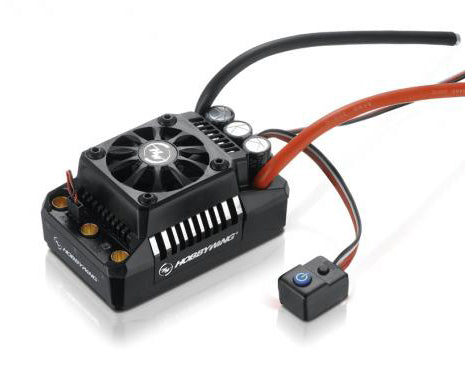

EzRun MAX5 -V3
Product Number：30104000
Type：1/5th Brushless SL Waterproof
Cont./Peak Current：200A/1300A
Input Voltage：3-8S LiPo/9-24 Cells NiMH
BEC Output：Switch Mode:6V/7.4V,6A
Input Wires：RRed-8AWG-200mm*1/Black-8AWG-200mm*1
Output Wires：Black-10AWG-200mm*3
Input Connectors：No
Output Connectors：6.5mm Famale Gold Connectors (pre-soldered onto the PCB)
SET Button on ESC/LED Program Box/LCD Program Box/WiFi Module/OTA Programmer/Firmware Upgrade：Supported
Program Port：FAN/Program Port
Fan Size：45.0x45.0x10.0mm（1.77x1.77x0.394inches）
Fan Voltage Range：5-7.4V，Powered by BEC
Product Dimensions：93.4x58.1x47.8mm（3.68x2.29x1.88inches）
Product weight：342g
Applications
Motors：SL BL Motors/SD BL Motors(only in SL mode)
Vehicles：1/5th Touring Car/Buggy/Truck
KV Rating/T Count：8S LiPo: KV ≤ 1000 (58110 Size Motors)
