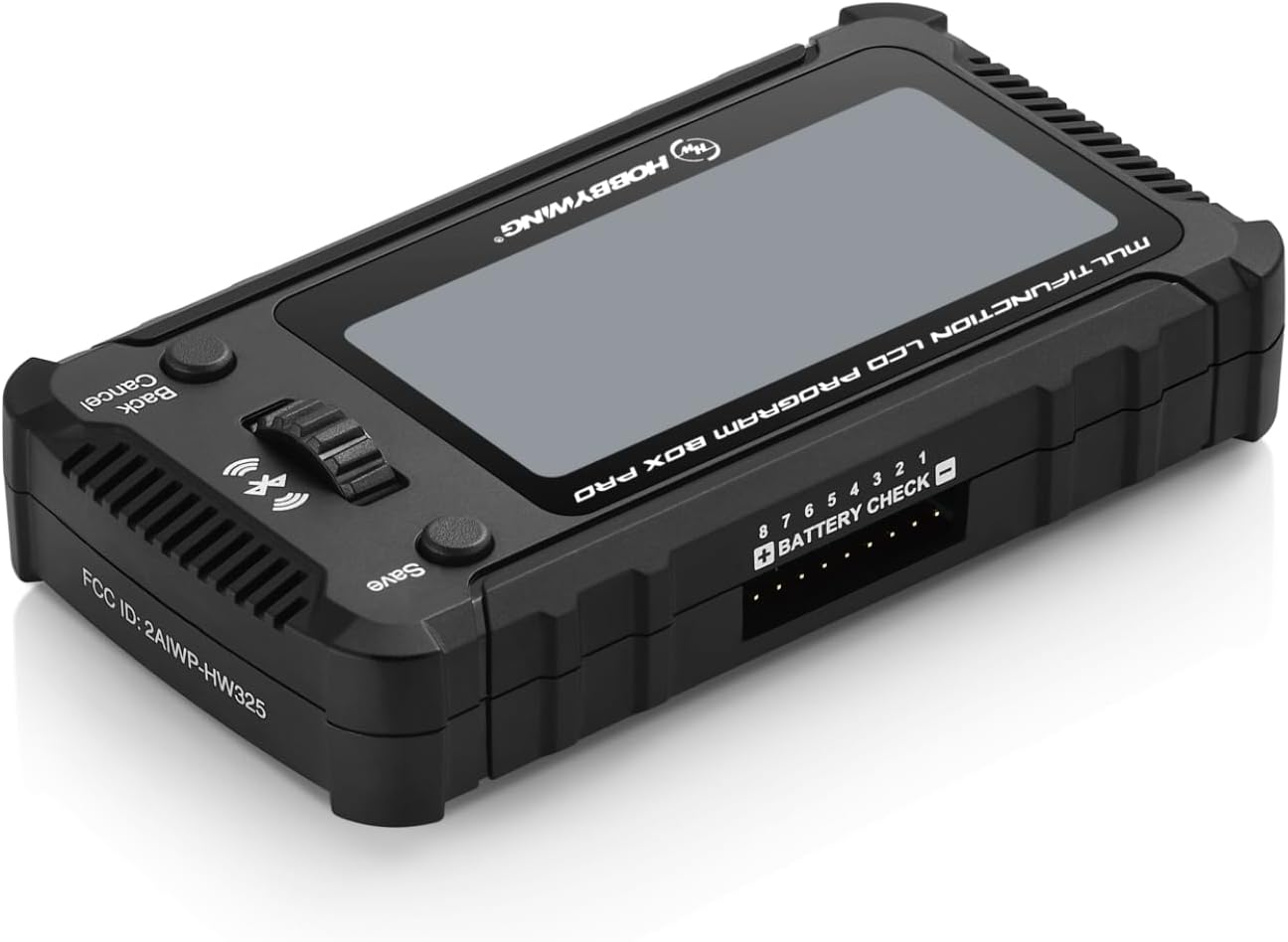

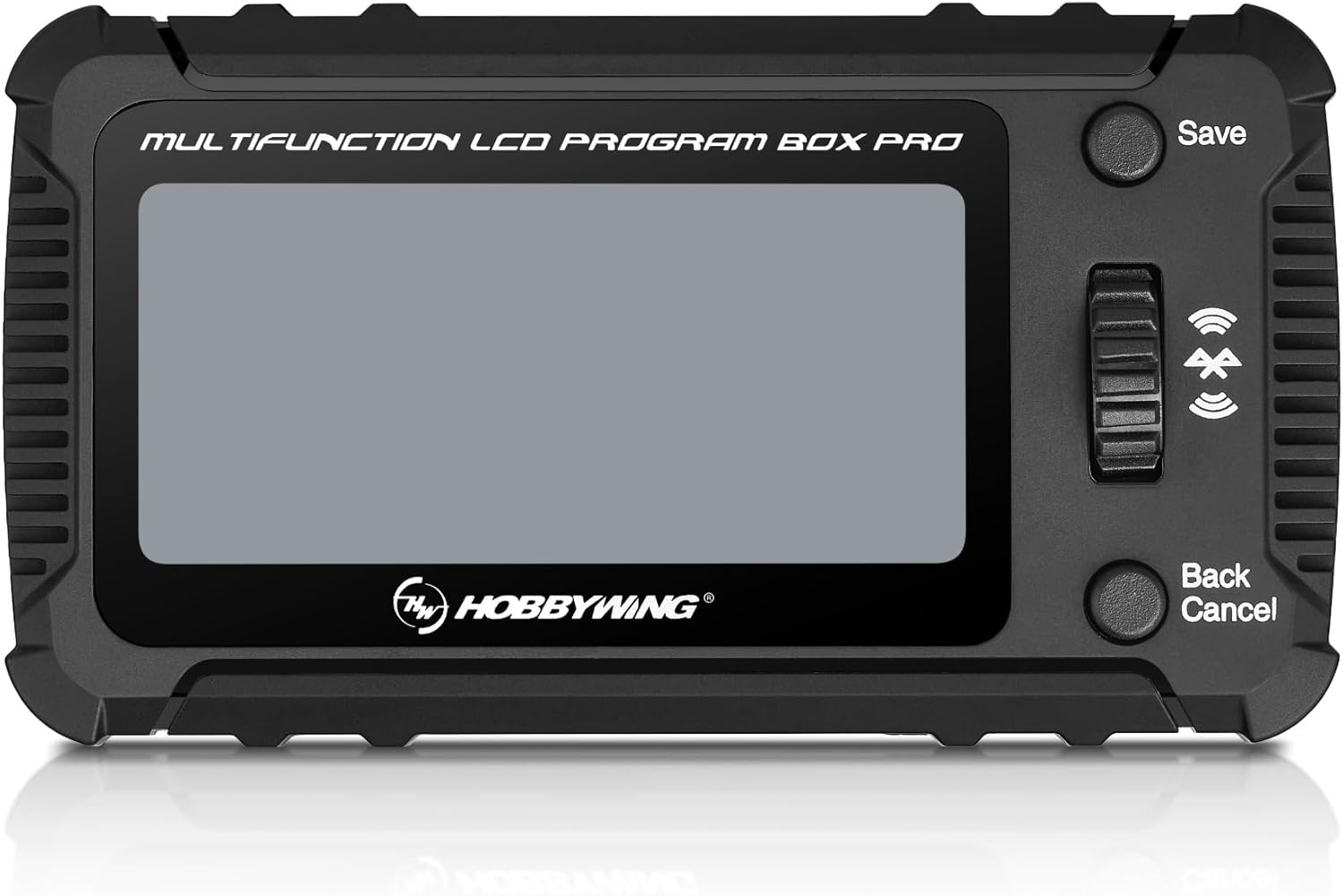

HOBBYWING Multifunction LCD Program Box Pro

Product Description



Simplified operation and control using the single roller interface.Navigating a speed controls settings is easier then ever.Import and Export your favorite profiles with ease. You can bring in your ESC settings,save them and export them to a new ESC.This makes profile sharing simple and easy.OTA parameter adjustment and firmware update,The built-in Bluetooth module functions as an OTA,Programmer. The ESC establishes a wireless connection with a smartphone through the LCD programming box.The HW Link V2 app can be used to adjust the ESC and update the Firmware.Supports updates to the firmware of the LCD Program box itself as well.







LCD Program Box Pro



Product Number：30502002



Size：105.6x59x24.4mm（4.16x2.32x0.961inches)（LxWxH）



Weight：85g



Input Voltage：5-12.6V (a separate battery is needed for powering this program box when ESC has no built-in/external BEC)

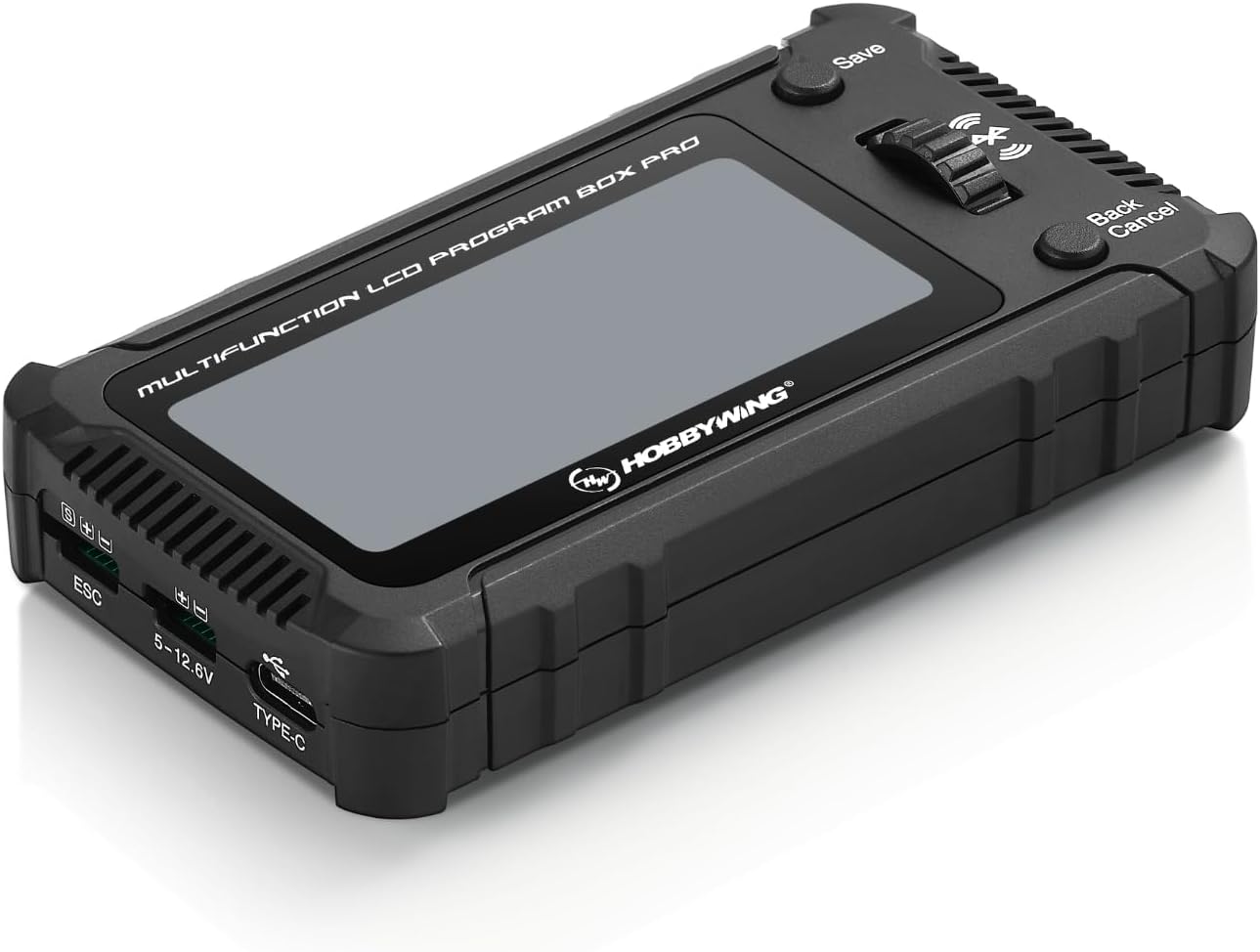

Interface：TYPE-C USB， ESC interface(Futaba plug),Power supply interface（Futaba plug）



Display Screen：LCD



Features：



• As an independent parameter adjustment device, directly use the built-in LCD screen to display, set, and share ESC parameters (import).



• Connect the ESC to a computer using a USB adapter. Use the USB Link application software on the computer to upgrade the ESC firmware and set parameters.



• The OTA Bluetooth module: Using the mobile APP to set ESC parameters, upgrade firmware, and read data.



• Detect the overall voltage of the lithium battery and the individual voltage of each cell.



The scope of application here can also be understood as all the escs that the old LCD G2 program box and OTA Bluetooth module can support.
