Product Description

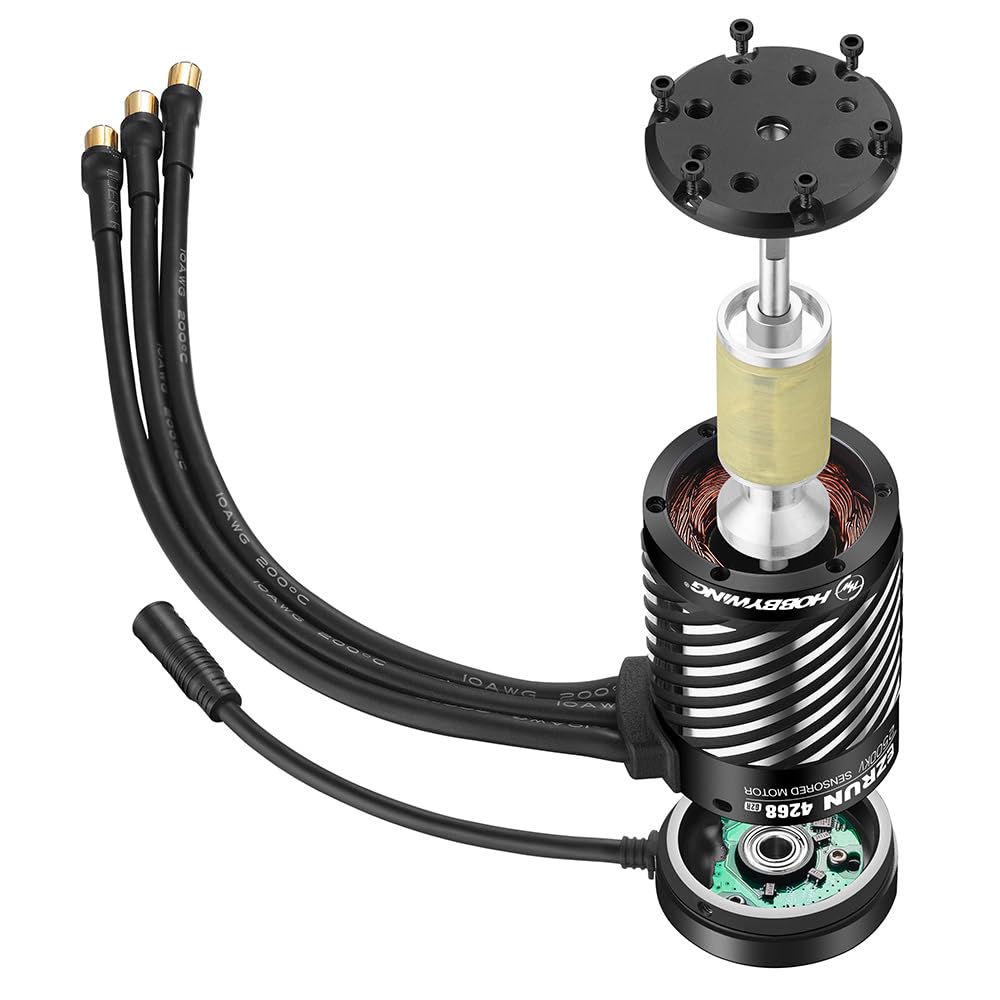

EzRun MAX 4200 Series G2R Motors have excellent compatibility with the Hobbywing EZRUN MAX8 G2S ESC. The ESC can automatically recognize this motor, creating a fully sensored power system that offers improved control performance and a refined control feel, while also enabling motor overheat protection. - The rotor features four high-strength, high-temperature-resistant sintered Nd-Fe-B magnets with widened magnetic tiles, delivering exceptional torque, explosive power, and stable output. - An independent magnetic ring ensures that the Hall sensor consistently outputs a pure rotor position signal, effectively avoiding sensor signal interference and enabling stable operation in sensor mode. - With high output efficiency, this motor reduces temperature and delivers more power under the same load. - Its CNC-machined aluminum housing, high-purity copper windings, advanced rotor structure, 0.2mm silicon steel laminations, high-quality stainless steel output shaft, and high-precision bearings enhance durability and smoothness. - The innovative new sensor interface and rubber-covered bearings provide superior waterproofing and dustproofing compared to traditional sensored motors.

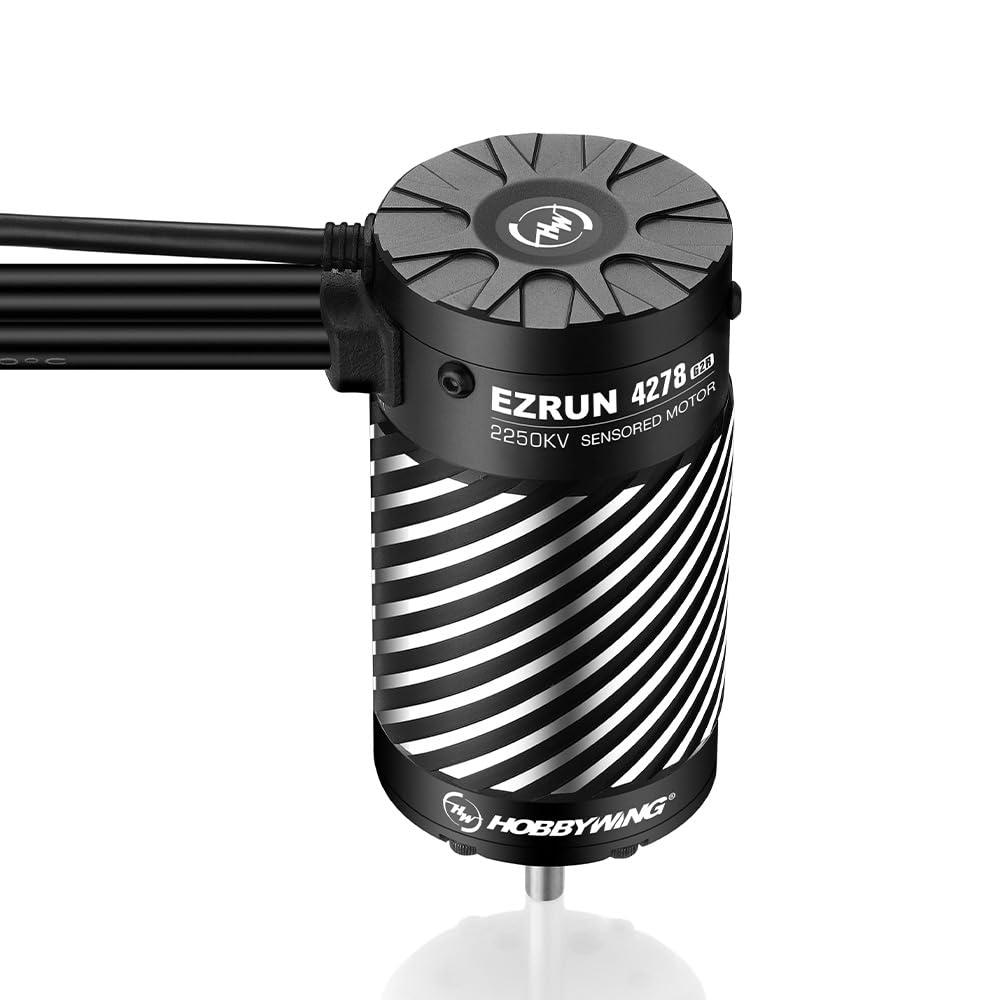

EZRUN 4278SD G2R
Product Number：30402141
Type：1/8th Brushless SD
KV Rating：2250KV
LiPo Cells：3-6S
No-load Current(A)：5.3A
Product Dimensions：42x78x5mm（1.65x3.07x0.197inches）
Product weight：465g
Front Bearing：D16*D5*T5
Rear Bearing：D11*D5*T5
Applications
ESC：EZRUN MAX8 G2S
Vehicles：1/8th Truck, Monster Truck
