Product Description
The ESC features an innovative waterproof sensor interface, enhancing its overall waterproof and dustproof performance. It easily handles harsh conditions, including sediment, ice, snow, and water accumulation. - Built-in ultra-powerful switch-mode BEC with support for 6V/7.4V/8.4V switching, compatible with a wide range of powerful, high-voltage servos. - Supports turbo timing settings, delivering remarkable timing response when paired with a compatible motor. - The built-in Bluetooth function (integrated into the switch) allows users to configure and upgrade the ESC directly via the mobile app, eliminating the need for additional devices and making the process simpler and more convenient. - Includes a data logging function to view various performance metrics on the HW LINK app. - Supports firmware upgrades for the ESC, ensuring access to the latest features and enhancements.

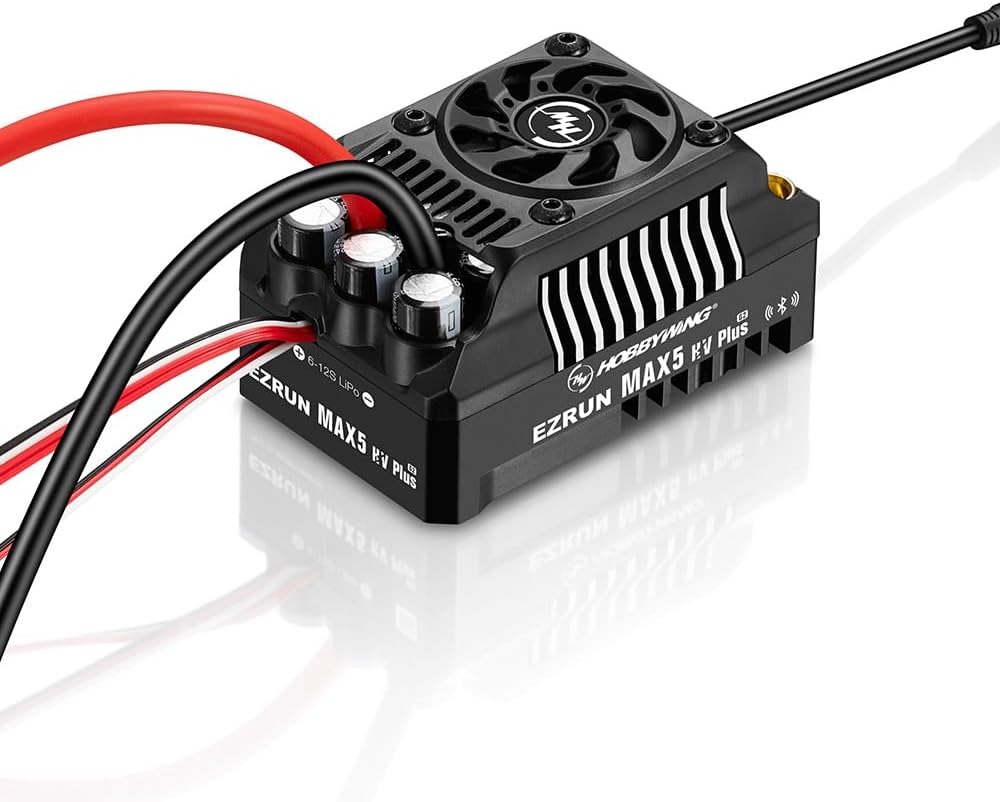

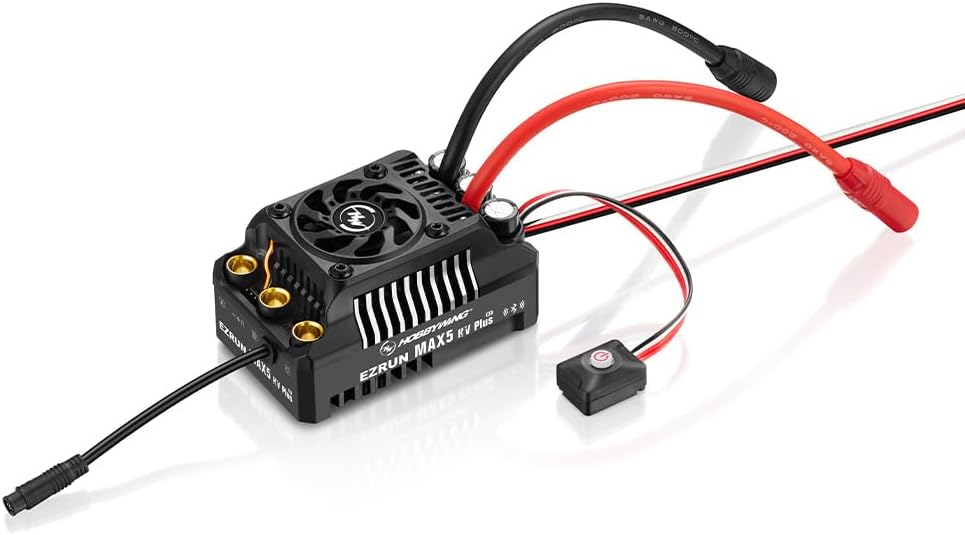

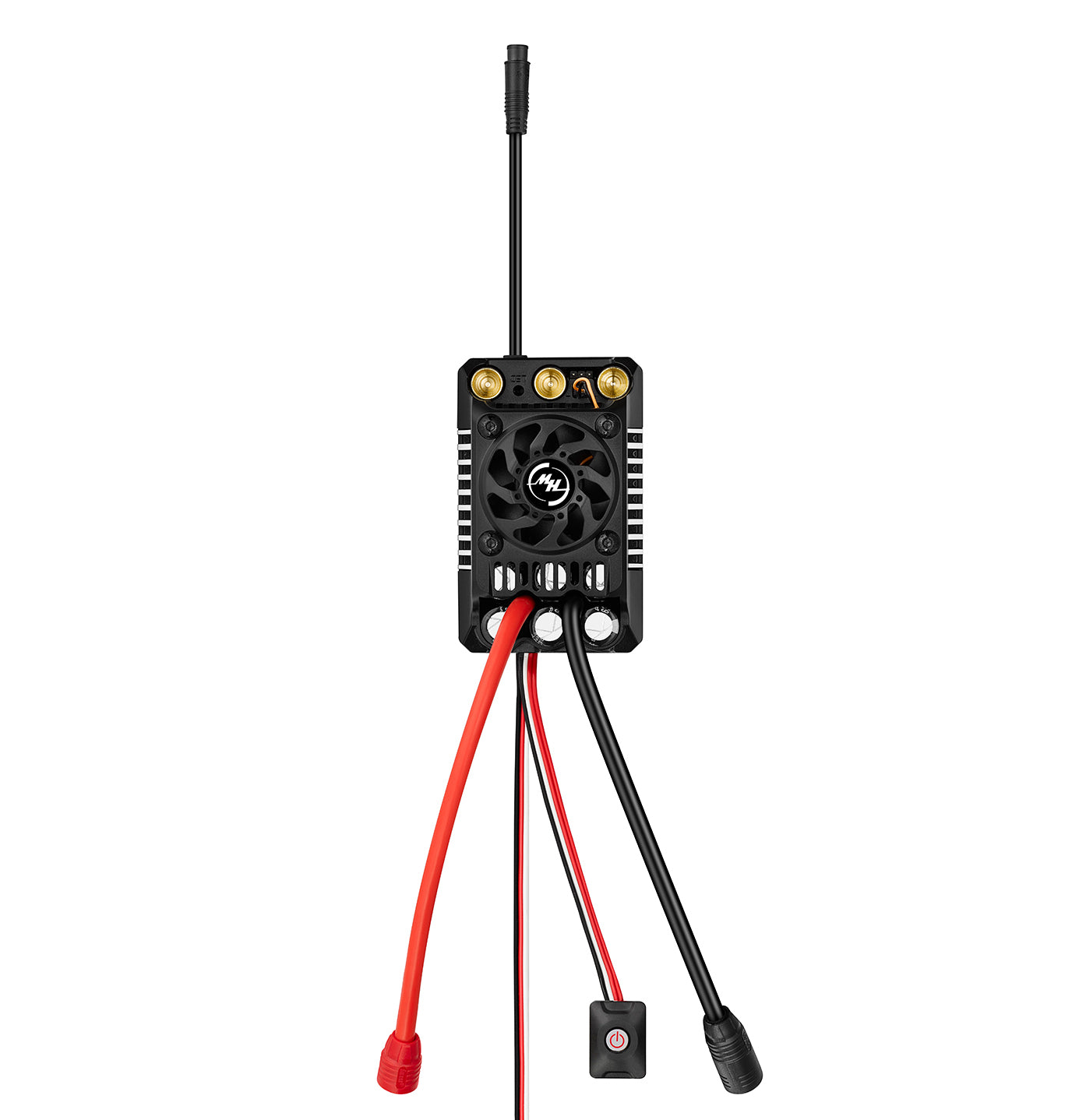

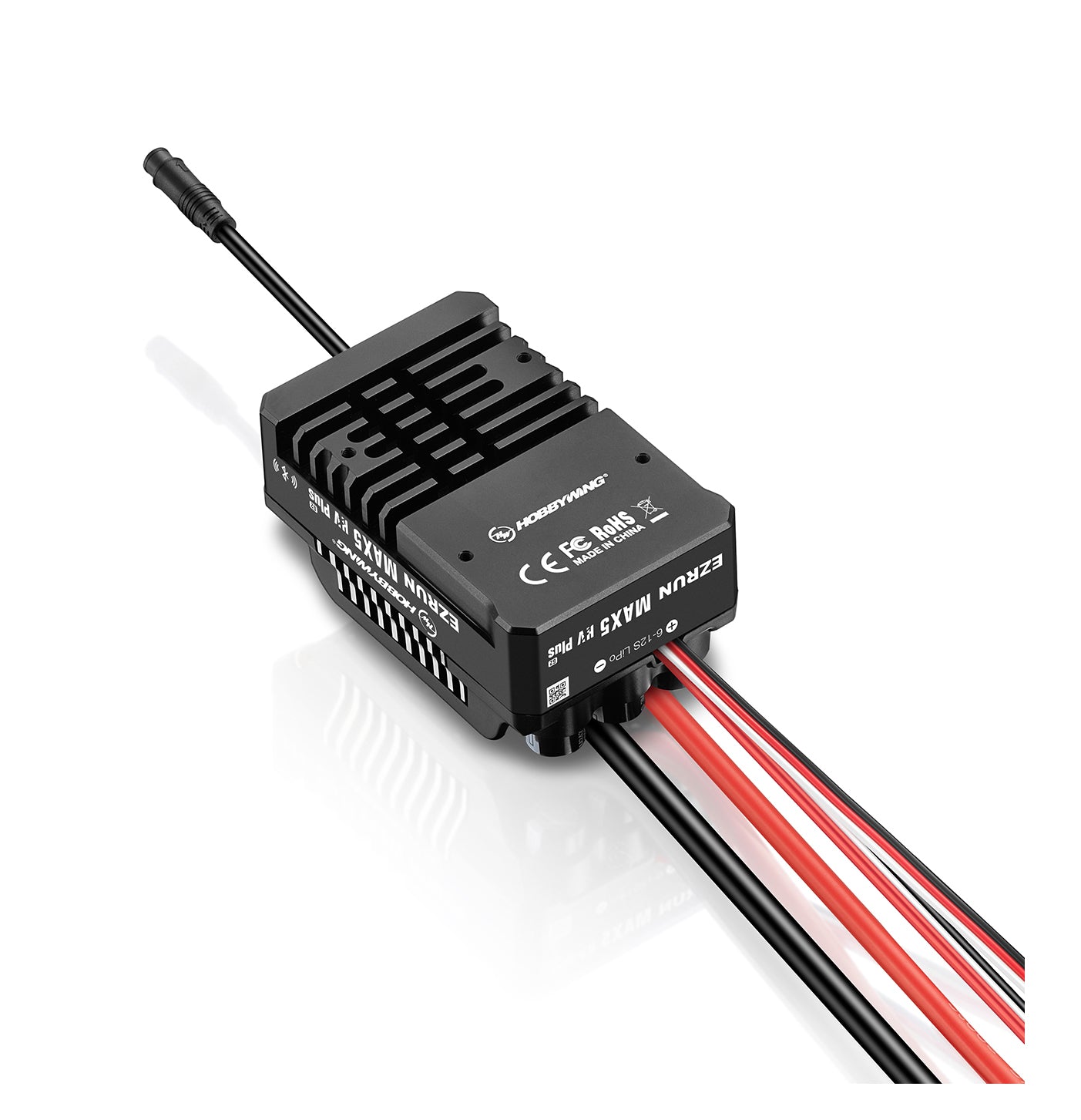

EZRUN MAX5 HV PLUS G2
Product Number：30104300
Type：1/5th、1/7th、1/8th Brushless SD Waterproof
Cont./Peak Current：330A/2000A
Input Voltage：6-12S Lipo
BEC Output：6V/7.4V/8.4V adjustable, cont. current 8A (Switch regulator mode)
Input Wires：Red-8AWG-200MM*1、Black-8AWG-200MM*1
Output Wires：NO
Input Connectors：AS150-F plug - red shell, AS150-M plug - black shell
Output Connectors：8.0MM Gold female plug
SET Button on ESC/LED Program Box：Not Supported
LCD G2 Program Box/OTA Programmer/LCD PRO：Supported
Extreme value/Real-time Data/Historical data (Graph)/Firmware Upgrade：Supported
Program Port：Bluetooth(directly connected by mobile phone APP)/ Independent Programming Port (connected by LCD/OTA)
Product Dimensions：94.5*59.4*51.6mm（3.72x2.34x2.03inches)
Product weight：450g(Including wires and plug)
Applications
Motors：Sensored Brushless motors & Sensorless Brushless motors
Vehicles：1/8th, 1/7th and other model cars for extreme speed applications, 1/5th trucks/monsters trucks for violent applications
Applicable Motor：EZRUN 5690/56118SL G2
