Product Description
The waterproof and dust-proof design allows the QuicRun WP-880 Dual Brushed to be used in all weather conditions without any issue of damage caused to the ESC from water or debris.The adjustable PWM frequency combined with advanced DEO/freewheeling technology guarantees users great throttle linearity and driving feel.innovative, fine-tunable drag brake rate and adjustable drag brake and brake force greatly improve the brag brake and allow users to have the excellent braking performance.which features 15 programmable parameter items, is applicable to variousvehicles and tracks.The separate PRG/FAN port on the ESC can power an external fan to maximize cooling performance or connect the ESC to a LED program box for ESC programming

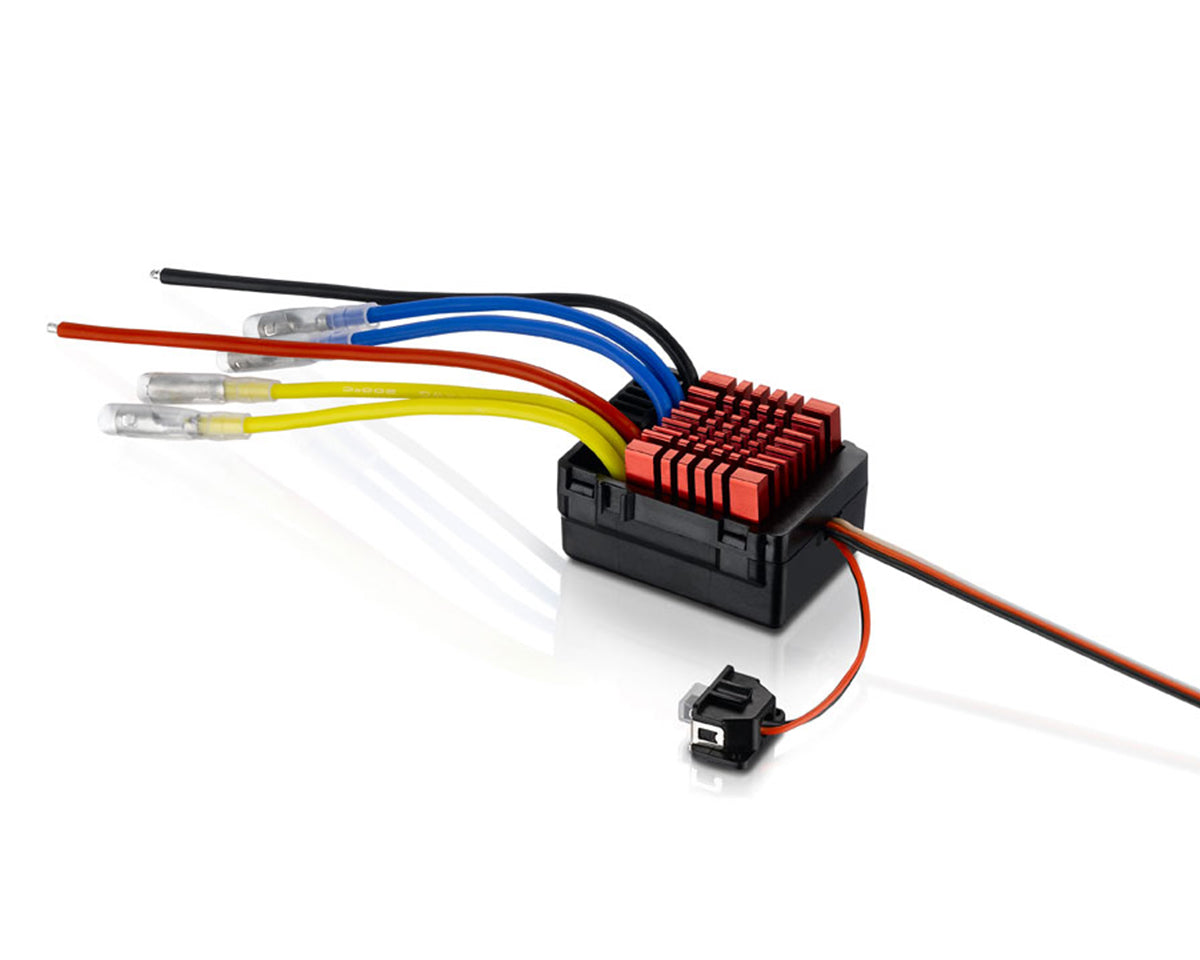

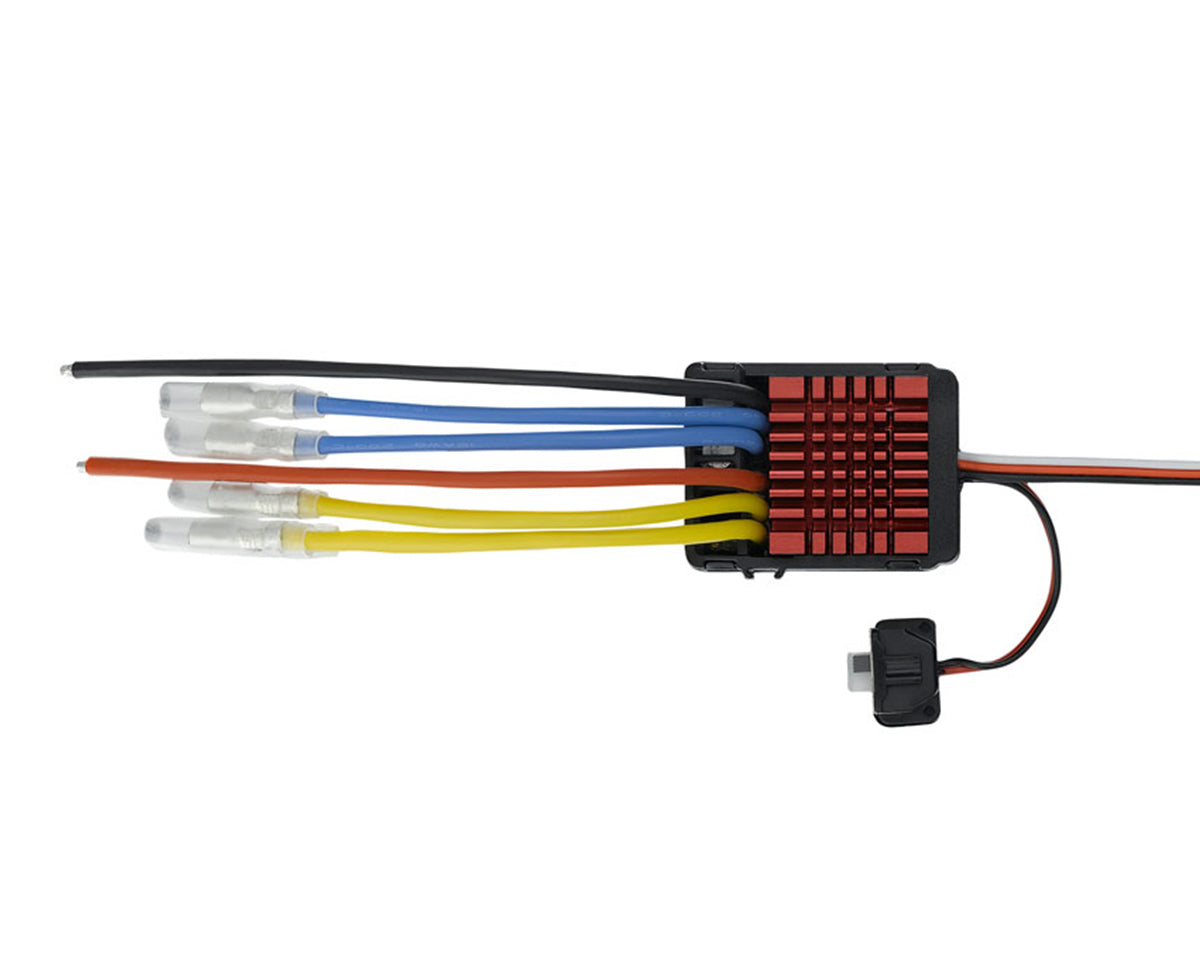

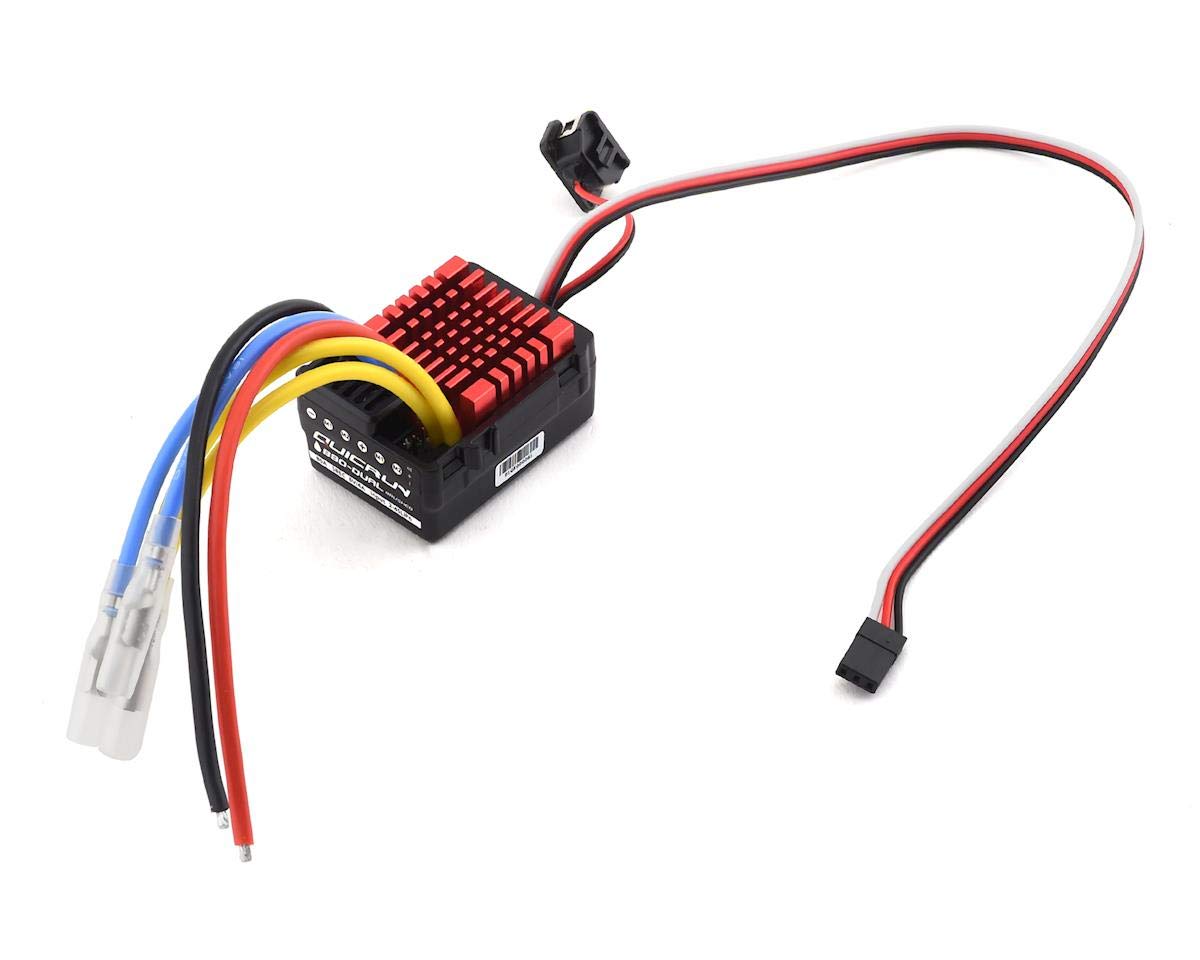

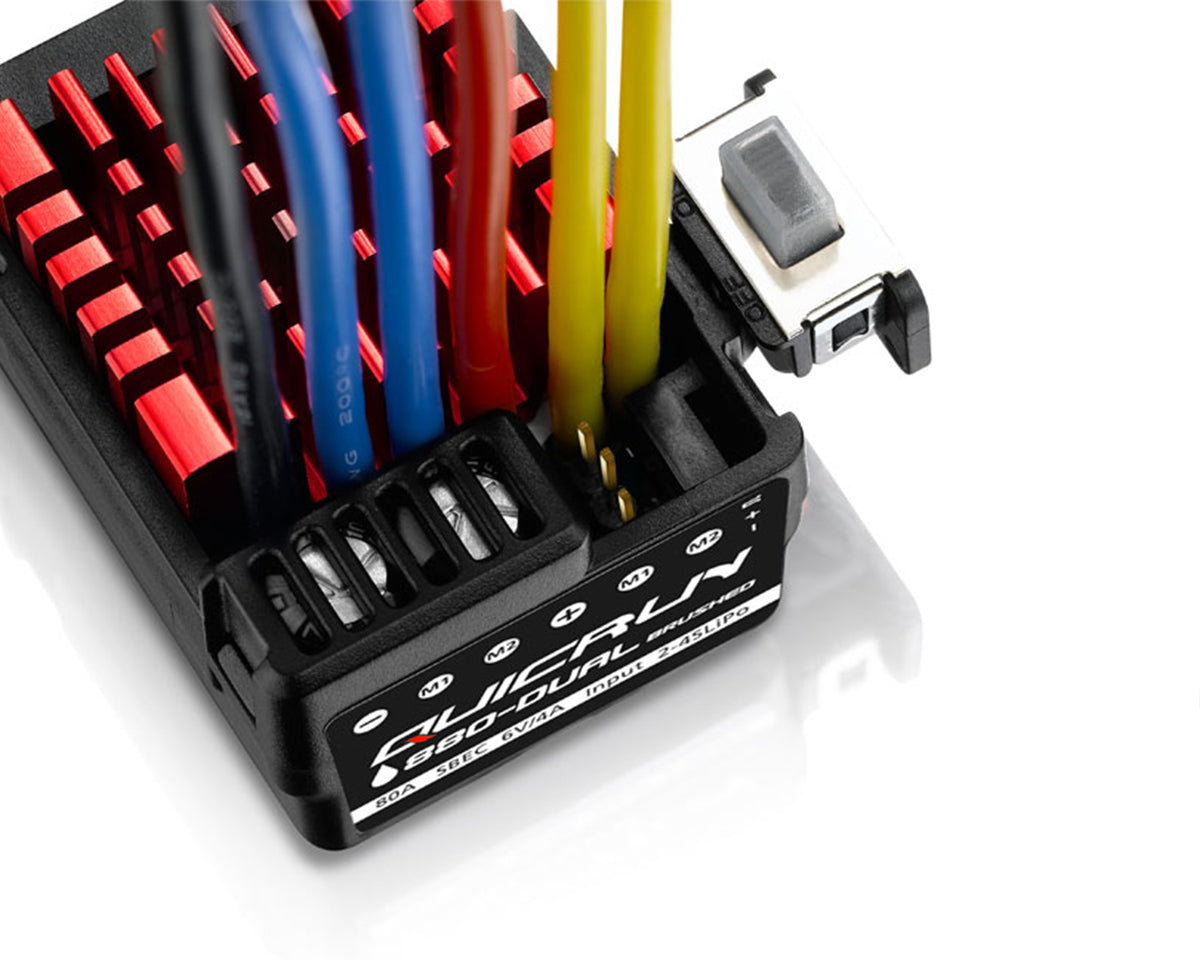

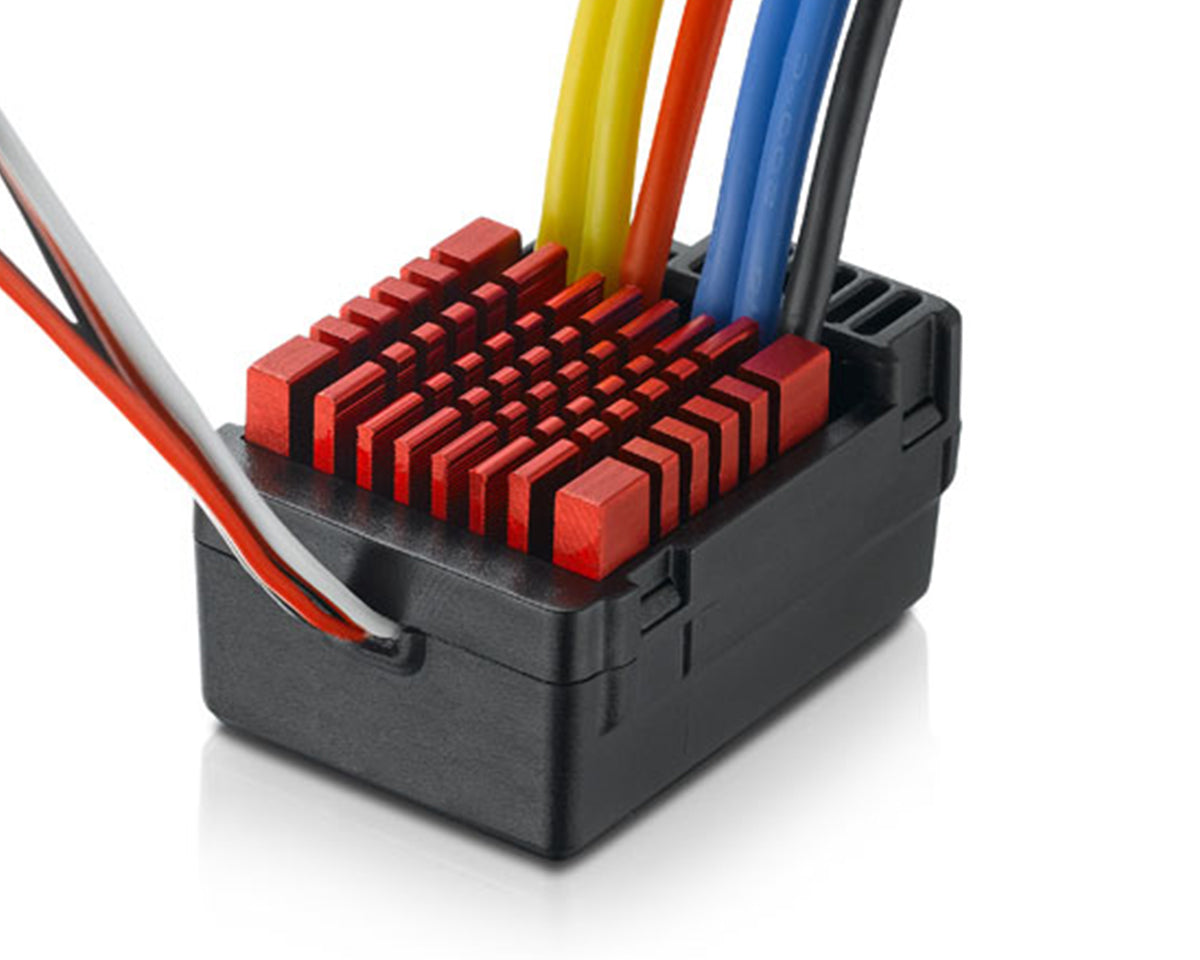

QuicRun WP 880 Dual Brushed
Product Number：30120301
Type：1/10th&1/8th Brushed Waterproof
Cont./Peak Current：80A/400A
Input Voltage：2-4S LiPo/5-12 Cell NiMH
BEC Output：6V@4A (Switch-mode)
Input Wires：Red-16AWG-150mmx1 / Black-16AWG-150mmx1
Output Wires：Blue-16AWG-100mmx2 / Yellow-16AWG-100mmx2
Input Connectors：No
Output Connectors：4.0 Bullet Connectors (Female)
SET Button on ESC/LCD Program Box/WiFi Module/OTA Programmer/Firmware Upgrade：Not Supported
LED Program Box：Supported
Program Port：Separate Port
Product Dimensions：45.9X34.7X26.5mm（1.81x1.37x1.04inches)
Product weight：75g
Applications
Motors：Brushed Motor（540/550/775 size motors）
Vehicles：Various 1/10th &1/8th Vehicles
KV Rating/T Count：
Brushed Motor Limit with 2S LiPo/6S NiMH: ≥12T or RPM<30000@7.4V (540/550 size motors)
Brushed Motor Limit with 3S LiPo/9S NiMH: ≥18T or RPM<20000@7.4V (540/550 size motors)
Brushed Motor Limit with 4S LiPo/12S NiMH: ≥24T or RPM<15000@7.4V (540/550 size motors)
