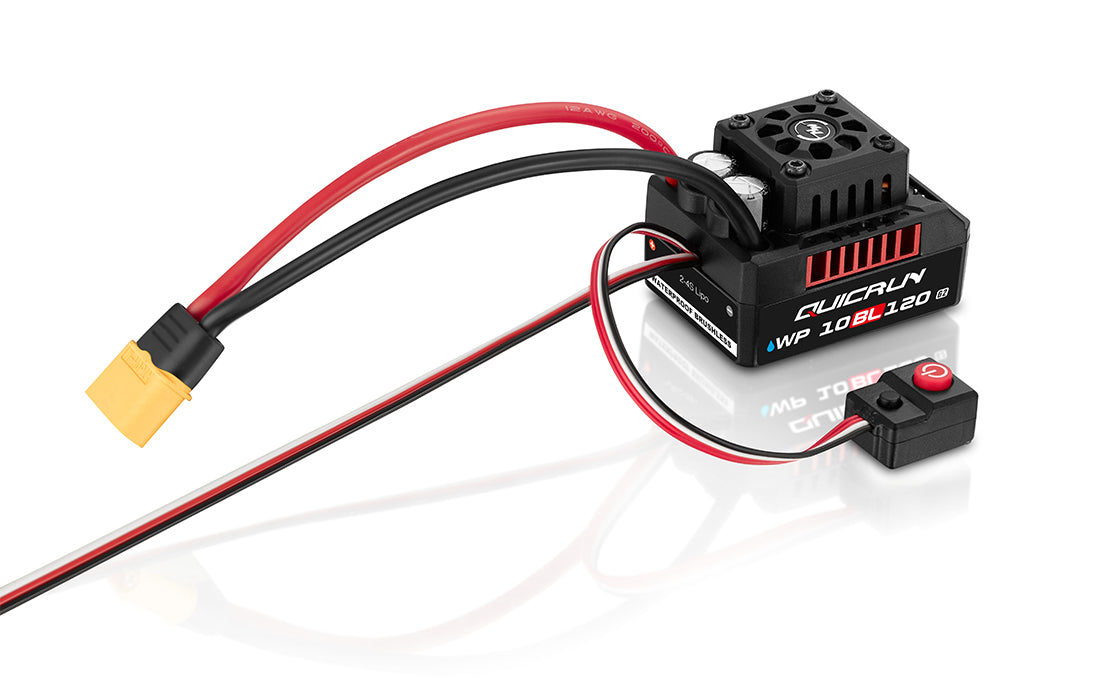

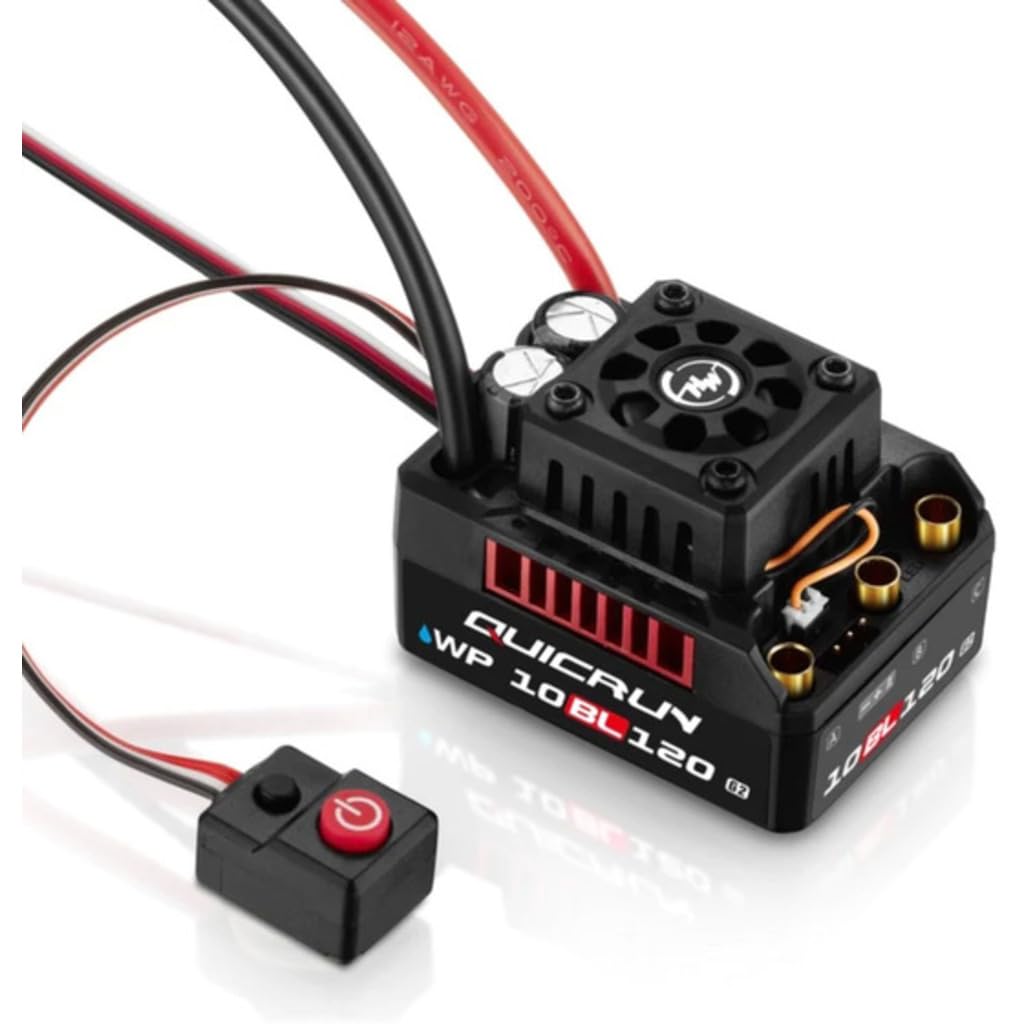

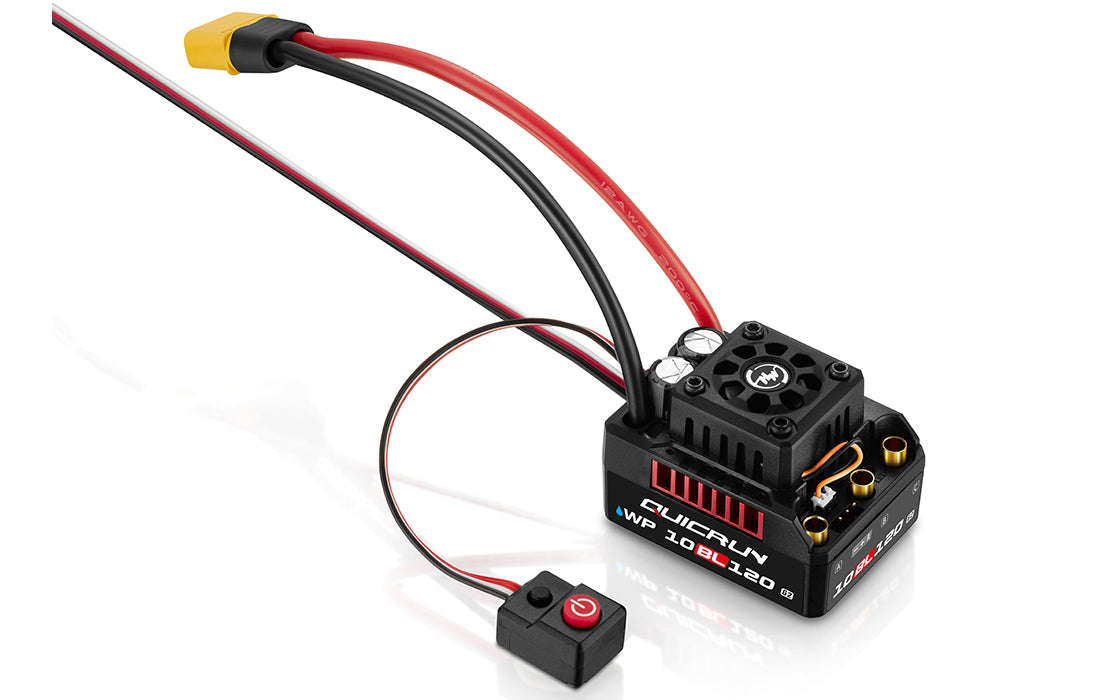

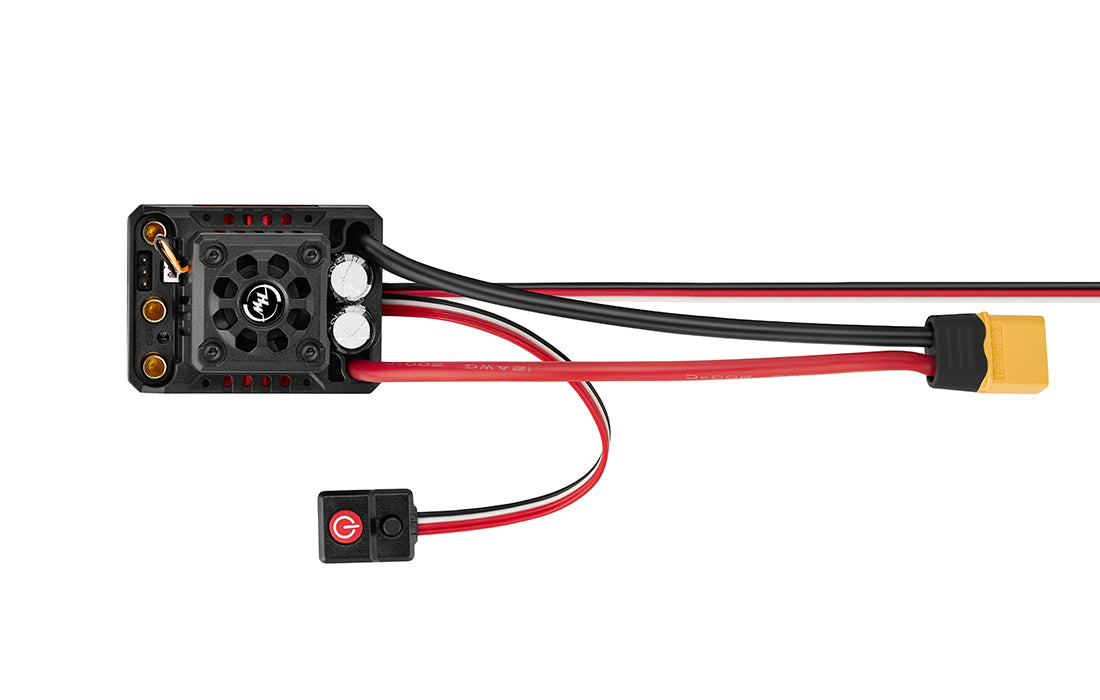

HOBBYWING QUICRUN WP 10BL120 G2 ESC

HOBBYWING QUICRUN WP 10BL120 G2 ESC

Regular price $69.99 USD
Regular price $69.99 USD Sale price $69.99 USD
Sale Sold out
View full details
  • Description


Product Description



Excellent waterproof and dustproof performance, it is easy to deal with various climatic conditions and harsh environment. Smart freewheeling technology makes the esc have higher driving efficiency and lower operating temperature, and the stability and reliability of the esc are further improved. Built-in powerful switch mode BEC, continuous current up to 5A, instant up to 10A, and support 6V/7.4V adjustable, easy to drive various powerful and high-voltage steering servo. Multiple protection functions: battery low voltage protection, esc overheat protection, throttle signal loss protection, current protection, capacitor overheat protection. It has an independent programming port. When connecting the program card, it is not necessary to pull the throttle cable out of the receiver, which is more convenient to use.







QUICRUN WP 10BL120 G2



Product Number:30107200



Type:1/10th Brushless Sensorless Waterproof



Cont./Peak Current:120A/760A



Input Voltage:2S-4S Lipo



BEC Output:Switching mode 6V/7.4V @5A



Input Wires:Black-12AWG-150MMmm*1 Red-12AWG-150MMmm*1



Input Connectors:XT60



Output Connectors:4.0 Bullet Connectors (Female)



Fan Size:25x25x10mm(9.84x9.84x3.94inches)



Fan Voltage Range:5-7.4V,Powered by:BEC



SET Button on ESC/OTA Programmer/Firmware Upgrade:Not Supported



LED Program Box/LCD G2 Program Box:Supported



Program Port:Separate Port



Product Dimensions:52.8*39.8*38.2mm(2.08x1.57x1.5inches)



Product weight:119g



Applications Motors:3660&4268



With or without sensing brushless motor



with sensing brushless motor (works only in sensing mode)
